GKS22 22m Self propelled straight Arm Aerial Work Platform

Name: GKS22 22m Self propelled straight Arm Aerial Work Platform
Brand: XCMG
Price: 1 USD

Quality GKS22 22m Self propelled straight Arm Aerial Work Platform wholesale

Brand Name : XCMG

Model Number : GKS22

Certification : CE ISO

Place of Origin : China

MOQ : 1pc

Price : negotiate

Payment Terms : 50% deposit, balance before shipment

Supply Ability : 10000pcs/year

Delivery Time : 30-50 days

Packaging Details : Ro-Ro

Total length : 11980mm

Total width : 2490/3590mm

Total height : 2840mm

Axle base : 3600mm

Rated work height : 28m

Max. platform height : 26.3m

Max.work range : 24.3m

Arm luffing time : 40s

Contact Now

GKS22 22m Self propelled straight Arm Aerial Work Platform

Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation

Maintenance
• It adopts America engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.

Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.

Items	Unit	Parameters
Total length	mm	11980
Total width	mm	2490/3590
Total height	mm	2840
Axle base	mm	3600
Rated work height	m	28
Max. platform height	m	26.3
Max.work range	m	24.3
Arm luffing range	°	-12~+80
Arm luffing time	s	40
Arm contraction time	s	70
Max.rotation speed	r/min	0.5
Max.tail swing	mm	1400
Platform size	mm	1800×900×1150
Platform rotation range	°	±90
Turntable rotation radius	mm	2650
Total weight under travel condition	kg	15770
Rated load	kg	150
Max. load	kg	450
Max.travel speed	km/h	5.6
Min. turning radius	m	7
Min.ground clearance	mm	260
Max. gradeability	%	30
Engine model		YC4D80-T10
Rated engine power	kW/(r/min)	58/(2400)
Solid tyre		10.00-20/7.5

GKS22 22m Self propelled straight Arm Aerial Work Platform

Product Tags:

road wrecker truck

articulating boom crane

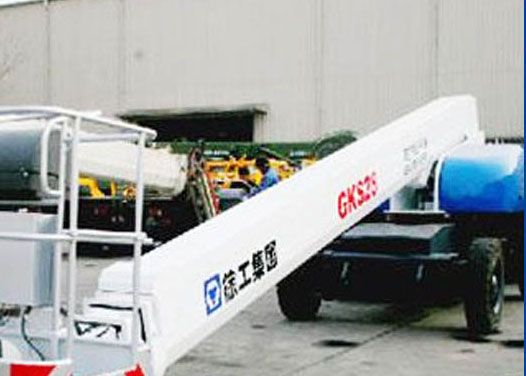

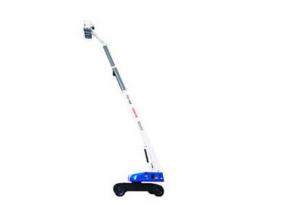

GKS22 22m Self propelled straight Arm Aerial Work Platform Images
