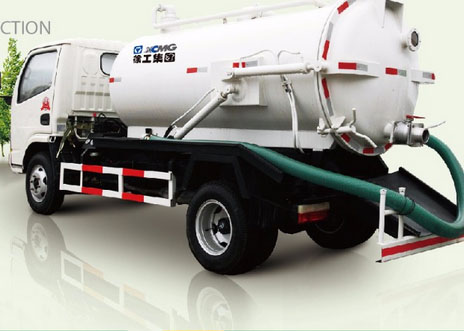

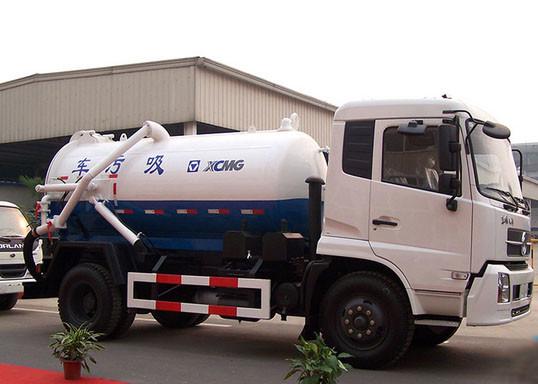

XZJ5060GXW Special Purpose Vehicles sewage suction truck More efficient

XZJ5060GXW Special Purpose Vehicles sewage suction truck More efficient

Parameter:

Vehicle Model:XZJ5060GXW

Chassis model:EQ1060TJ20D3

Maxium total mass:6495kg

Curb weight:3350kg

Load weight:3015kg

Effective volume:3.85m³

Dimensions:5980*1980*2680mm

Wheelbase:3300mm

Approach angle:19/11°

Features:

1.Adopt domestic advanced chassis that is safety and reliable.

2.Tin body that is highly resistant to corrosion after acid pickling and spreading antirust paint.

3.Import vacuum pump is adopted, that have fine lubrication ,work reliable, low oil consumption, big sucking and draining capacity ,so sucking and draining system is reliable.

4.Three functions of vacuum suction pressure emission and self-flow emission are offered. The design of the pipeline is very novel, it is easy to operate and convenient for installation and maintenance.

5.The structures of control valve,cylinder and pipeline are advanced, the performance of that are reliable ,easy to operate and convenient for maintance.

6.Tin top is eauipped with anti-overflow device controller, as liquid reach to rated range,controller float ball will close vacuum pipeline immediately to prevent liquid entering vacuum pump. thereby disturbing vacuum pump working.

7.Front left of tin is equipped with a level indicator, the liquid level can be showed clear.
