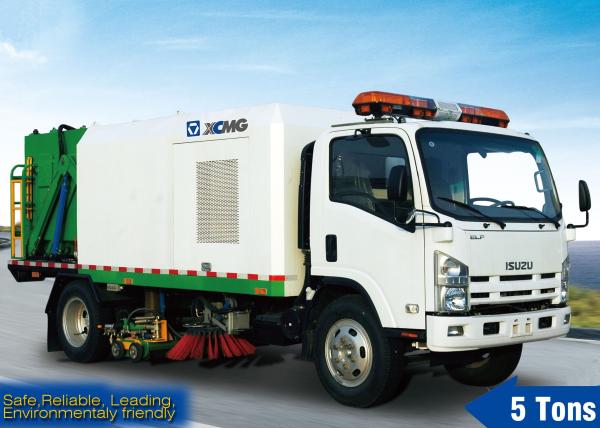

Cleaning Washing Road Sweeper Truck 70000 m2/h For Airport
- Name: Road Sweeper truck, Sweeping Truck, road cleaner sweeper truck, Sweeper with washer
- Volume of dustbin: 7000L
- Volume of water tank: 9000L
- Maximum cleaning capacity: 70000 m2/h
- Clean water rated flow: 154L/min
- Applications: for the cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.
- Fuction: road washing, sweeping, rinsing and sewage recovery
- Total mass: 16000kg
- Cleaning and sweeping width: 3.5m
- Cleaning and sweeping speed: 3～15 km/h
Description:
Sweeper with washer has the fuctions of road washing, sweeping, rinsing and sewage recovery. Except a combination of the sweeper and cleaner, a low presure pump is added on the vehicle, to spray water like a sprinkler. This muti-fuction vehicle is suitable for the cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.
Applications:
multifunction road sweeper vehicle is suitable for the cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.
Specifications:
|
Vehicle models
|
XZJ5160TXS
|
|
Chassis model
|
DFLll60BX
|
|
Dimensions
|
8950*2480*3050
|
|
Curb Weight
|
12450kg
|
|
Total mass
|
16000kg
|
|
Cleaning and sweeping width
|
3.5m
|
|
Cleaning and sweeping speed
|
3～15 km/h
|
|
Sweeping width
|
3.5m
|
|
Sweeping speed
|
5～20 km／h
|
|
Carriage volume
|
16Mpa
|
|
Clean water rated flow
|
154L/min
|
|
Maximum cleaning capacity
|
70000 m2/h
|
|
Work efficiency
|
≥95%
|
|
Unload Angle
|
≥50°
|
|
Sprinking range
|
24m
|
|
Volume of water tank
|
9000L
|
|
Volume of dustbin
|
7000L
|
Competitive Advantage:
1. The car combines the fu nctions of sweeping and high pressure washing, using 'established in the home of two extra-wide brushes + mid + mid-lateraljet nozzle bar' approach. It has high efficiency, good mobility, multiply functions, and high vehicle utilization ratio.
2. The car has a centralized operational control cab, making the operation much easier. Hand pumps and stand by operation control box are eq uipped outside the cab for emergency use in maintenance.
3. Taking advantages of separate sub-engine driven fans, high-pressure pumps and other work devices the car can ensure that the power meets the work needs under all exercises.
4. The gear between the vice-engine and the fan adopts the vehicle-use clutch device which is reliable and easy to replace. The high-pressure pump adopts imported pneumatic clutch, making the combina-tion and escape of power fast and effectively ensu ring smooth engine power output.
5. The scan disk has the automatic obstacle avoidance protection function and the automatic reset function.
6. The sweeping rotation speed can be adjusted according to different cleaning conditions. The choice ofhig h, medium and low grades ensu res good clea ning effect under va rious pollution conditions.
7. The car makes use of advanced. Efficient and specialized fans withexcellentanti-seismic and antiseptic function.
8. Water tanks equipped before and after the car a re made of qualified stainless steel. With capacious water tanks, the car can work for long hours.
