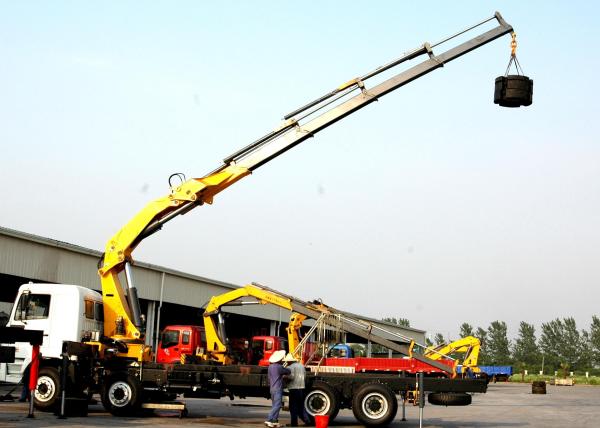

14ton Knuckle Boom Truck Crane SQ14ZK4Q

14 Ton Transportation XCMG Hydraulic Knuckle Boom Truck Crane

1. Name: Knuckle boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
2. Max Lifting Capacity: 14 ton
3. Max Lifting Moment: 35 t.m
4. Max Oil Flow of Hydraulic System: 63 L/min
5. Max. Lifting height:14meters
6. Brand: XCMG
7. Crane Weight: 4800 kg
8. Oil Tank Capacity: 220 L
9. Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope.
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ14ZK4Q is lifting capacity is 14tons , moment is 35T.M.

Applications:

Knuckle boom cranes can be configured to do just about any job imaginable, from delivering products to cleaning up debris after the job is done.

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­

Specifications:

Dimension Drawing:

Optional parts:

1.Remote control equipment

2.Moment limited valve

3.High seat on column

4.JIB

5.Assisatant stabilizer leg

Competitive Advantage:

1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour Connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling

F A Q

Q: Are you a trading company?
A: No, we have our own factory, factory+trading company.

Q: How is your warranty?
A: We provide 12 months warranty for our products.

Q:If I don’t know how to install, what should I do?
A: Don’t worry about that, we have professional engineers help you.

Q: How is your after-sale service?
A: 24 hours and 7days service.

lorry mounted crane

truck with crane

14ton Knuckle Boom Truck Crane SQ14ZK4Q Images
