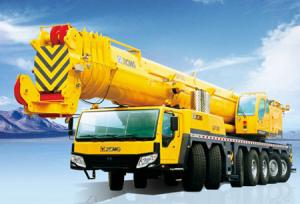

Durable 6-segment retractable boom QAY220 Hydraulic Mobile Crane

Name: Durable 6segment retractable boom QAY220 Hydraulic Mobile Crane
Brand: XCMG
Price: 1 USD

Quality Durable 6-segment retractable boom QAY220 Hydraulic Mobile Crane wholesale

Place of Origin : China

Brand Name : XCMG

Certification : CE

Model Number : QAY220

MOQ : 1pc

Price : negotiate

Packaging Details : Ro-Ro

Delivery Time : 30-50 days

Payment Terms : 30% deposit, balance before shipment

Supply Ability : 10000pcs/year

Overall weight in transport : 72000kg

Overall length : 15850mm

Engine model : Imported Benz EFI engine

Max. rated total lifting capacity : 220t

Max. travel speed : 72km/h

Min. turning diameter : 23m

Contact Now

Durable 6-segment retractable boom QAY220 Hydraulic Mobile Crane

Feature:

• QAY220 all terrain crane inherits the 222 patent techniques and 38 new patents techniques.
• The product adopts 6-axle chassis, 12x12 full-axle steering, 6-segment retractable boom, and oval section. The variable section technique make the machine has big antitorque and high stability. The optimized various retractable boom combination play the performance to the most.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%. The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes. The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety. The comfortable cabs and outrigger operation completely show the humanity design concept. Equip with the XCMG unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, CAN technique, etc.

Parameter

Dimension	Unit	QAY220
Overall length	mm	15850
Overall width	mm
Overall height	mm	4000
Weight
Overall weight in transport	kg	72000
Front axle load	kg
Rear axle load	kg
Power
Engine model		Imported Benz EFI engine
Engine rated power	kW/(r/min)	420/1800
Engine rated torque	N.m/(r/min)	2700/1300
Travel
Max. travel speed	km/h	72
Min. turning diameter	m	23
Min. ground clearance	mm
Approach angle	°	16
Departure angle	°	18
Max. grade ability	%	50
Fuel consumption for 100km	L
Main performance
Max. rated total lifting capacity	t	220
Min. rated working radius	mm
Turning radius at turntable tail	m
Max. lifting torque	kN.m	6774
Base boom	m
Fully extended boom	m	64
Fully extended boom+ jib	m	96
Longitudinal outrigger span	m	8.7
Lateral outrigger span	m	8.8
Working speed
Boom luffing time	s
Boom full extension time	s
Max. swing speed	r/min
Max. speed of main winch (single rope) (no load)	m/min
Max. speed of aux. winch (single rope) (no load)	m/min

The specification is subject to change without notice.
