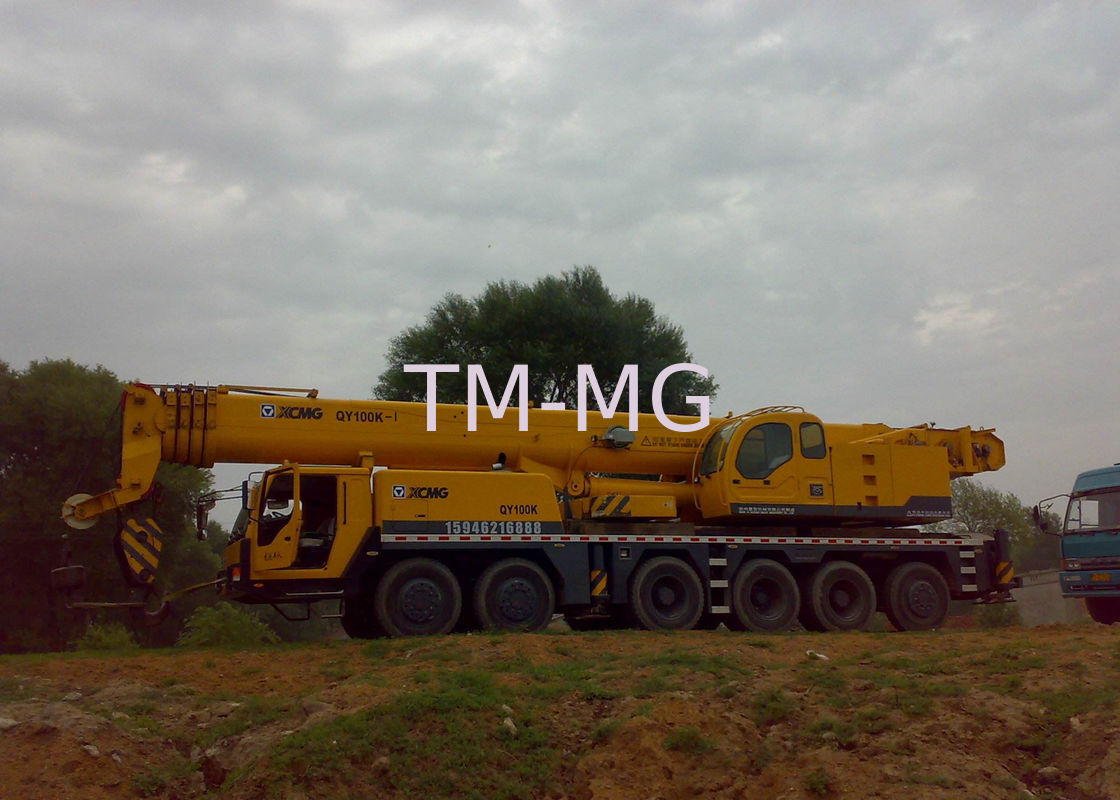

Durable QY100K-I Truck Crane , Hydraulic Mobile Crane With Embedded Block

Name: Durable QY100KI Truck Crane Hydraulic Mobile Crane With Embedded Block
Brand: XCMG
Price: 1 USD

Quality Durable QY100K-I Truck Crane , Hydraulic Mobile Crane With Embedded Block wholesale

Place of Origin : China

Brand Name : XCMG

Certification : CE

Model Number : QY100K-I

MOQ : 1pc

Price : negotiate

Packaging Details : Ro-Ro

Delivery Time : 30-50 days

Payment Terms : 30% deposit, balance before shipment

Supply Ability : 10000pcs/year

Model : QY100K-I

Max.rated lifting moment : 3450kN.m

Max.rated capacity : 100t

Full-extended boom : 48m

Approach angle : 20°

Departure angle : 14°

Contact Now

Durable QY100K-I Truck Crane , Hydraulic Mobile Crane With Embedded Block

Feature

• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.

Technical Parameter

Dimension	Unit	QY100K-I
Overall length, width, height	mm	15600×3000×3850
Wheel base	mm	1420+2420+1800+1420+1505
Weight
Total weight in travel	kg	54900 58000
Axle load
Axle 1	kg	7500 7500
Axle 2	kg	7500 7500
Axle 3	kg	8300 10000
Axle 4	kg	12000 12500
Axle 5	kg	12000 12500
Axle 6	kg	7600 8000
Power
Engine rated power	kW/(r/min)	360/1800 (306/1900)
Engine rated torque	N.m/(r/min)	2200/1300 (2010/1200)
Engine rated speed	r/min	1800 (1900)
Min. ground clearance	mm	310
Travel
Approach angle	°	20
Departure angle	°	14
Braking distance (at 30km/h)	m	≤10
Max. grade ability	%	40
Min. turning diameter	m	24
Fuel consumption for 100km	L	70
Main performance
Max. rated total lifting capacity	m	100
Min. rated working radius		3
Turning radius at turntable tail
Counterweight	mm	4200
Aux. winch	mm	4590
Max. lifting torque		3450
Base boom	kN.m	3450(4m×88t)
Fully extended boom	kN.m	1950(24m×7.1t)
Fully extended boom + jib	kN.m	1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal	m	7.56
Lateral	m	7.6
Lifting height
Base boom	m	13.5
Fully extended boom	m	50.9
Fully extended boom + jib	m	70.4
Boom length	m	13.5
Fully extended boom	m	51
Fully extended boom + jib	m	51+18.1+4
Working speed
Jib setting angle	°	0,15,30
Boom luffing time	s	75
Boom
Boom telescoping time
Full extension	s	160
Max. swing speed	r/min	2
Outrigger extension/retraction time
Outrigger beam in extension/retraction	s	25/15
Outrigger jack in extension/retraction	s	45/25
Lifting speed (single rope, layer 4)
Main winch	m/min	105
Aux. winch	m/min	104

The specification is subject to change without notice.
